For other sizes and dimensions, see
3000 P.S.I.-1/5 Pt. to 40 Gal.

5000 P.S.I. - 1 Qt. to 15 Gal.

400 P.S.I. Mobile-1/2 Pt, 1 Pt., 1 Qt.

Mounting Clamp

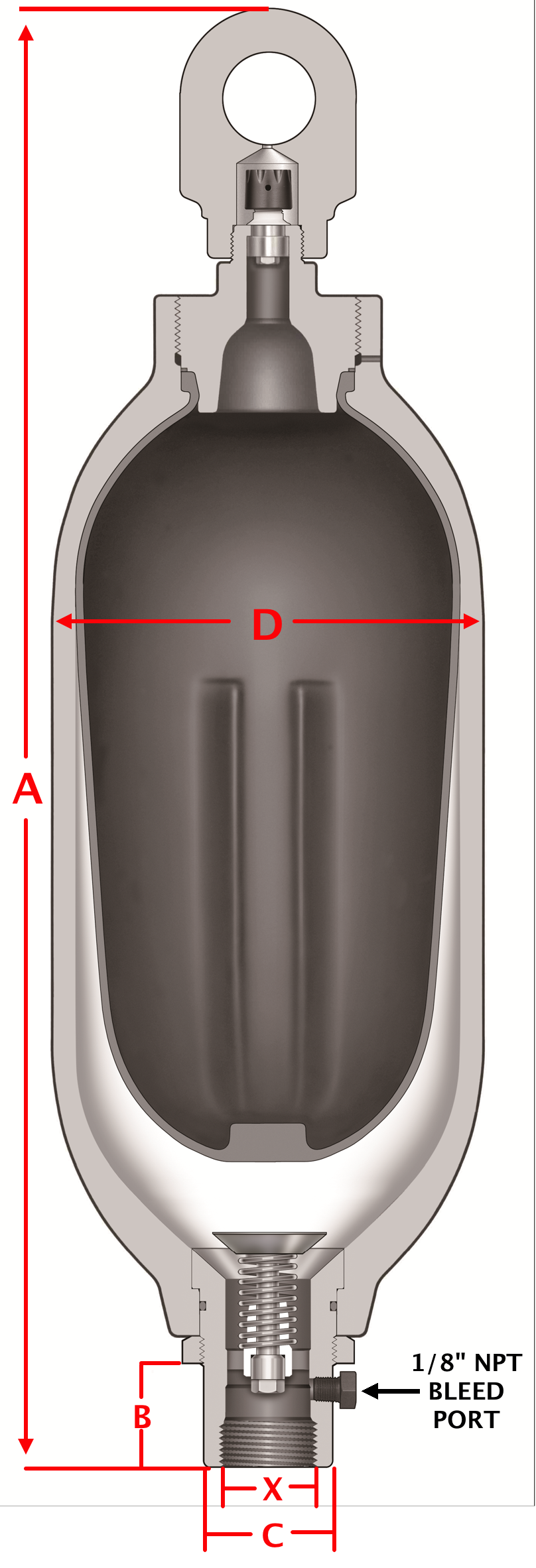

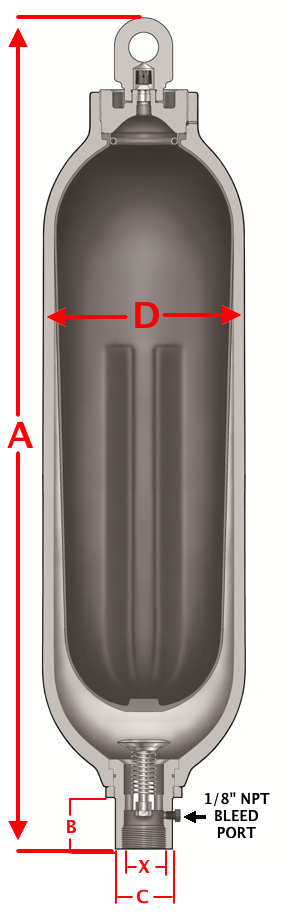

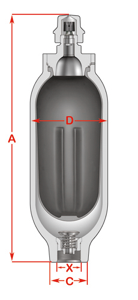

Internal Design #1 Internal Design #2 Internal Design #3 Internal Design #4

Design Details:

The internal designs illustrate the following construction features: The cushion cup is only used on the 11/2 gallon and larger. The oil port housing is part of the accumulator shell on the 1/5 pint to 1 gallon. Accumulator shells are uncoated on sizes 1/5 pint to 1 gallon, and have a heat hardened acrylic resin coating on sizes 11/2 gallon to 40 gallon.

Internal
Design #		 Nominal
Size		 Model
Number		 Actual Size
Gallons		 Actual
Size
Cu. In.		 Weight
Lbs.
Dimensions - Inches
A..........B.................C..........D..............X..............X alt**
 Max. Flow*
GPM In/Out
1
1/5 Pint
1 Pint		 J250-01D
J250-05D		 0.02
0.12		 4.9
28 		4.4
12		 5.67
9.26
-
1.26
1.73
2.84
3.80
3/8" NPT
3/4" NPT		 1 1/16-12
1 5/8-12
5
11
2
1 Quart
1/2 Gal.
1 Gal. 		R210-1D
R210-2.5D
R210-4D		 0.28
0.71
1.08		 64
163
250		 15
29
37		 11.82
16.11
21.75
-
2.40
2.40
2.40
4.50
5.51
5.51
1 1/4" NPT
1 1/4" NPT
1 1/4" NPT		 1 5/8 -12
1 5/8 -12
1 5/8 -12
32
32
32
3
1 1 /2 Gal.
2 1/2 Gal.
4 Gal.		 A210-6.3D
A210-10D
A210-16D		 1.74
2.67
4.39		 402
616
1013		 66
86
123		 22.10
28.80
41.41

1.89
1.89
2.25
2.25
2.25
7.51
7.51
7.51
1 1/4" NPT
1 1/4" NPT
1 1/4" NPT
 1 5/8 -12
1 5/8 -12
1 5/8 -12
79
79
79
4
5 Gal.
7 1/2 Gal.
10 Gal.
12 1/2 Gal.
15 Gal.
30 Gal.
40 Gal.		 N210-20A
N210-30D
N210-40D
N210-50D
N210-60D
N210-120D
N210-160D		 5.68
7.27
9.54
12.97
14.32
28.51
40.24		 1312
1678
2227
2996
3307
6584
9294		 187
246
308
396
419
794
1080		 31.09
40.74
49.21
61.90
67.33
76.04
79.79
1.89
2.76
2.76
2.76
2.76
3.27
4.06
3.03
3.03
3.03
3.03
3.03
3.64
4.37
10.54
10.54
10.54
10.54
10.54
14.01
16.01
2" NPT
2" NPT
2" NPT
2" NPT
2" NPT
2 1/2" NPT
3" NPT		 1 7/8-12
1 7/8-12
1 7/8-12
1 7/8-12
1 7/8-12
N.A.
N.A.
159
159
159
159
159
238
317

*Max. flow based on vertical installation. **X alternate port SAE O-Ring type.

Charging valve thread on top of accumulator is 1/2-20. A .305-32 UNF type thread available on request. A NV-3 type charging valve is necessary for charging std. accumulators. Actual size is the internal volume of the shell less the volume occupied by the bladder.
